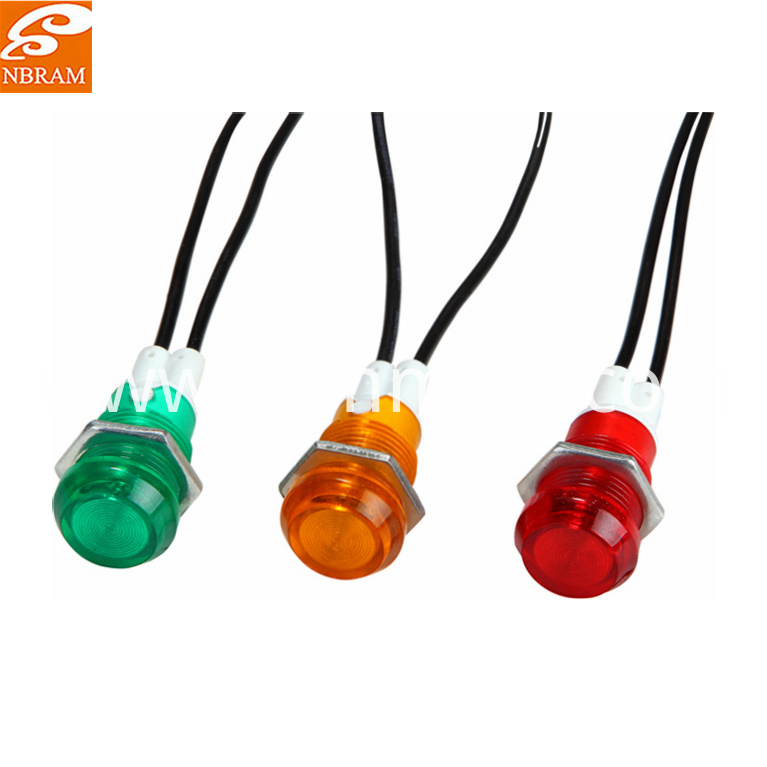

Neon Indicator Light K09 Signal Lamp

Main technical parameters:

Environmental Temperature: -25+55;

Working under vibration frequency 2-80Hz,acceleration at 0.7g;

Relative Air Humidity: ≤98%;

Pollution rank is three grade and installation category is III;

Protection Degree: Head IP65(OEM could be IP67);

Voltage of working frequency: 2.5kV (AC valid value), 1min;

Leakage Index: CT1≥100;

Model: K09

Voltage: 12/24VDC
Color: red,yellow,green,clear
Size of mounting hole:8mm
Thickness of mounting panel:0.8-3mm
Temperature resistance: 105 Celsius degree
Life time: 25000hrs(red light)
Material of lamp base:PC
Material of lamp holder: Nylon

Terminal: 250/187 terminals and jackets
